NEX E8 Leggero FBL 3 Blade Kit SALE!

Part Number: JRP998058

Retail:

$999.99

MAP:

$199.99

Discontinued

  • Overview

  • Features

  • Specifications

  • Requires

  • Questions


Overview

- JRP998058 - NEX E8 Leggero FBL 3 Blade Kit SALE!

Why a 3 Bladed Head?

  • More collective/Cyclic Power
  • Increased stability and tracking
  • No Dampeners
  • Improved Autos
  • Unique 3 Blade Sound

3 axis gyro system, Motor, Speed Controller, Battery and Servos are not included.

Features

- JRP998058 - NEX E8 Leggero FBL 3 Blade Kit SALE!

  • Unique control system allowing sub trim free STF (Sub Trim-
  • Free) adjustment

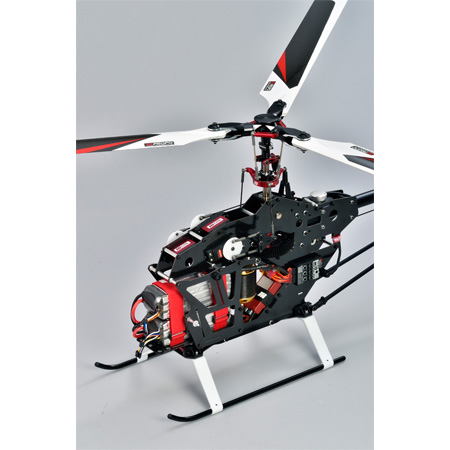

  • Flybarless 3 Bladed rotor head with metal main blade grips
  • Carbon main frame and tail pieces for lightweight and rigid
  • construction
  • New frame design allows for easy installation and access to
  • motor, ESC, batteries and electronics

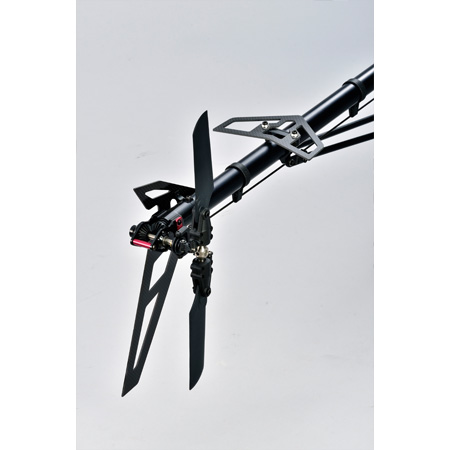

  • Shaft-driven tail with robust tail box and gears to handle the
  • most extreme 3D flying
  • Three-color prepainted FRP canopy

Specifications

- JRP998058 - NEX E8 Leggero FBL 3 Blade Kit SALE!

  • Length 1,225mm / 48.23in
  • Height 443mm / 16.26in
  • Width (Landing strut) 212mm / 8.35in
  • Main Rotor Dia. 1,362mm / 53.62in (with 600mm rotor blades)
  • Tail Rotor Dia. 268mm / 10.56in
  • Gear Ratio 8.7 : 1 : 4.4
  • Gross Weight 2,830g / 6.24lb or more (Excluding main rotor blades)

Requires

- JRP998058 - NEX E8 Leggero FBL 3 Blade Kit SALE!

  • A complete radio system capable of 120 degree or 140 degree CCPM
  • Gyro System
  • Main rotor blades
  • Thick grips 12mm
  • Bolt hole 4mm
  • Length 600mm
  • * wooden rotor blades are unusable
  • Brushless Motor
  • Approximately 740KV [8cell]
  • Approximately 500KV [12 Cell]
  • ESC 100A or greater
  • Lithium-Polymer Battery
  • 4 Cell-4,400mAh ("2)
  • 6 Cell-3,300mAh ("2)
  • Battery Connector Pins
  • Battery Charger
  • Lead harness
  • Gold,60-core 150 LG (150mm)
  • (Several may be required)
