FORZA 450EX - 6 cell electric 3D helicopter

Â

The FORZA450 EX is based on the very successful FORZA450. It is designed for the pilots who want more power! It comes with a rear body faring, which you can choose to fly with or not. Many parts are compatible with the FORZA450, so it is economical to maintain.

Features

Rigid and lightweight carbon frames give a very clean look to the helicopter (identical to the FORZA450) .

The carbon main rotor blades are 32mm longer than the FORZA450.The bearing blocks (with integrated servo mounts) and rotor head are taken from the FORZA450.

The new low-profile landing skids (with engraved logo on the landing struts) are 14mm lower than those on the FORZA450.

The tail control lever is also taken from the FORZA450 · this is a very simple design with no free play.

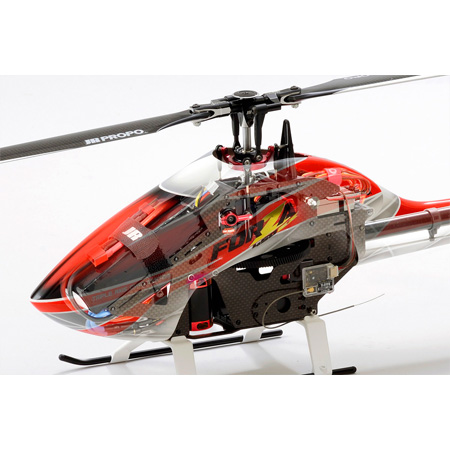

The canopy is sized to have mounting space for most batteries.

Because the body catch positions are the same as the FORZA450, it can be mounted on either the FORZA450 or FORZA450 EX.

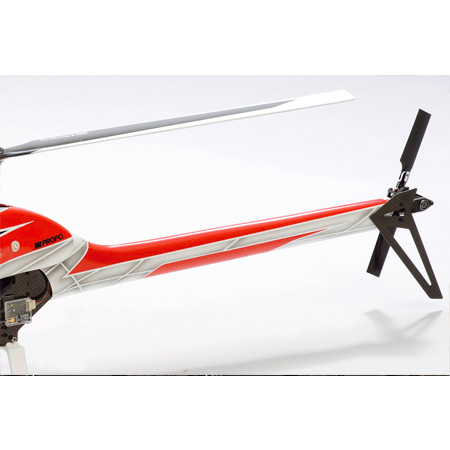

A painted rear fairing is included as standard. It is constructed from FRP, and helps support the tail.

Because the standard tail boom brace is included, you can also fly the FORZA450 EX in a pod and boom configuration.

Specs

Overall length 670mm

Overall height 208mm

Overall width 112mm

Flying weight approx 910g

Main rotor diameter 795mm

Included Main blade length 357mm

Tail rotor diameter 165.5mm

Gear ratio 9.07 : 1 : 4.29

Main shaft diameter Φ6mm

Tail output shaft diameter Φ4mm

Requires

DMSS Transmitter (120 CCPM capable)

Lithium-Polymer (Li-Po) Battery

6 Cell 22.2V

Capacity 1200mAh or more

Size: 36 x 115 x 32 mm (maximum)

Battery connector, Battery charger

Includes

Assembly kit

Carbon main rotor blades 357

Main rotor blade holder

Motor NHM-30-8P-EX (KV1750)

ESC NHA-50-SB5

Swash servo FBL-DS21 (3 pcs)

Rudder servo DS3500G

3 Axis Gyro TAGS MINI w/remote antenna RA01L

* Calibrated and parameters optimized.
