JR Americas

NEX E6-550 Full Combo with 2-Blade Head

Part Number: JRP988352

Retail:

$1399.99

MAP:

$799.99

Discontinued


Due to a temporary production delay, there is currently no ETA available for this item.
  • Overview

  • Features

  • Specifications

  • Requires

  • Includes

  • Questions


Overview

JR - JRP988352 - NEX E6-550 Full Combo with 2-Blade Head

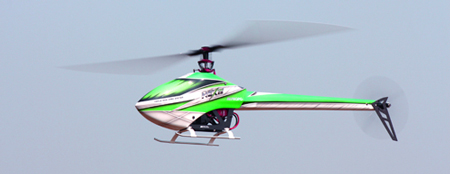

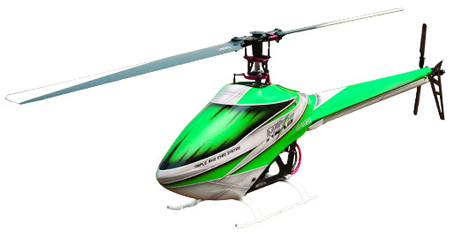

The lightest weight "NEX E6-550" electric FBL helicopter in 550class helicopter.

This is a COMBO that comes with a motor, ESC, servos, Gyro and main rotor blades.Â3 axis gyro is already parameters optimized

Features

JR - JRP988352 - NEX E6-550 Full Combo with 2-Blade Head

  • FRP front&rear body set is included. It's painted in florescent green base color, improves visibility.
  • Easy to mount and remove the battery because the one-touch battery mount is included.

Specifications

JR - JRP988352 - NEX E6-550 Full Combo with 2-Blade Head

  • Overall length : 986mm
  • Overall width (Landing strut) : 158mm
  • Overall height : 321mm
  • Gross weight : 2,300g or more
  • Main rotor diameter : 1,142mm
  • Tail rotor diameter : 220mm
  • Gear Ratio :
    Â 13.64:1:4.26 (T11)
    Â 12.5:1:4.26 (T12)

Requires

JR - JRP988352 - NEX E6-550 Full Combo with 2-Blade Head

  • Lithium-Polymer Battery (Li-Po)
    Â 6 Cell (22.2V) 2,600mAh-5,000mAh
    Â Size 46 x 60 x 160mm (maximum)
  • Battery Connectors
  • Battery Charger
  • Transmitter (140 CCPM capable) and receiver

Includes

JR - JRP988352 - NEX E6-550 Full Combo with 2-Blade Head

  • Assembly kit
  • FBL rotor head
  • Carbon Main Rotor Blades
  • ONE-TOUCH BATTERY MOUNT (#61898)
  • FRP body set NEX E6-550 (#82405)
  • Brushless Motor : NHM-40-8P (KV1750)
  • ESC : NHA-75-SB5 V2
  • Triple Axis Gyro System TAGS01
    Â * Parameters optimized.
  • Swash Servo FBL-DS11 (3pcs)
  • Rudder servo DS3500G
